30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV
FIM-2430 is small in size, cigarette box size, easy to carry, often used for long-range wireless image transmission, aerial medium-distance wireless video transmission purposes. For example, special transmission: it can be used for wireless image transmission applications such as various robotic applications, light UAVs, ultra-light UAVs, rotorcrafts, micro-UAVs, unmanned submarines, unmanned vessels, unmanned vehicles, airships, target aircraft, unmanned power
parachutes, unmanned aerial vehicles, etc.
Main Features
- Stable transmission of bi-directional data and video signals under high-speed mobile and multipath interference
|
- Powerful LOS 30-50KM transmission capability
|
- Frequency, bandwidth and other parameters can be directly adjusted by the software we supply.
|
- Frequency has a wide range of applications.
|
- Hot plugging is supported. Automatic Recognition of Audio and Video Sources
|
- End-to-end low latency 50ms
|
- Support two way RS232 and TTL
|
- Support HDMI and Ethernet TCP/UDP input
|
- AES/ABS 128-bit encryption
|
With our own Encoding&Decoding technology , latency within 70ms
Specification
| Frequency | 2.4GHz(2.402-2.482GHz) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 1.5Watts |
| Power Consumption | TX: 17Watts/RX: 6Watts |
| Distance | 30km |
| Bandwidth | 4/8MHz |
| Video Input/output Interface | On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX |
| Bit rate and channel adjustment mode | DIP or SPI2MCU |
| Antenna | 1T1R/ Tx: 5db(Omni Antenna) /Rx: 14dbi 90°Directional Antenna |
| Video Color Space | Default 4:2:0 |
| Video Compressed Format | AVC adds H.265 feature TS stream |
| Bit rate | Software adjustment |
| Encryption | AES128 |
| Transmission Mode | point to point |
| Start-up time | 25s |
| Latency | 50ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity | -100dbm@4Mhz -95dbm@8Mhz |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support TTL/MAVLINK/Telemetry |
| Interface (same interface on TX & RX) | 1. 1080P 60 HDMI Mini RX x1 |
| 2. 100Mbps Ethernet to USB / RJ45 on Windows x1 |
| 3. S1 TTL bidirectional serial port x1 |
| 4. S2 TTL bidirectional serial port x1 |
| 5. Power Input (DC7-18V) x1 |
| Indicator Light | HDMI input/output indicator light |
| Transmitting and receiving indicator light |
| Video board indicator light |
| Power light |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Appearance Design | CNC technology/double aluminum alloy shell with waterproof design |
| Power supply | DC 7- 18V (DC 12V advised) |
| Temperature Range | Operating temperature: -40°C ~+85°C Storage temperature: -55°C ~ +100°C |
| Dimension | Tx: 74x71x23mm/ Rx: 74×71×23mm |
| Weight | Tx: 148g, Rx: 148g |
|
|

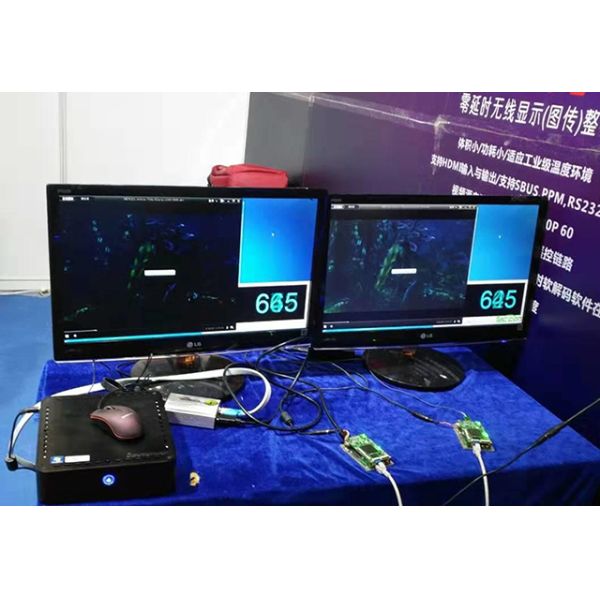

30-50km COFDM Wireless Video Transmitter for VTOL/Fixed Wing Drones/UAV Images
|
